The Electromagnetic Flow Meter (often referred to as a “mag meter”) is a critical field device used in SCADA‑controlled water treatment and wastewater automation systems for accurately measuring the volumetric flow of conductive liquids such as raw water, treated water, and wastewater. Based on the principle of Faraday’s Law of Electromagnetic Induction, this flow meter generates a magnetic field within the pipe and measures the induced voltage created by the conductive liquid passing through that field. The magnitude of this voltage is directly proportional to flow velocity, enabling precise calculation of the instantaneous flow rate.

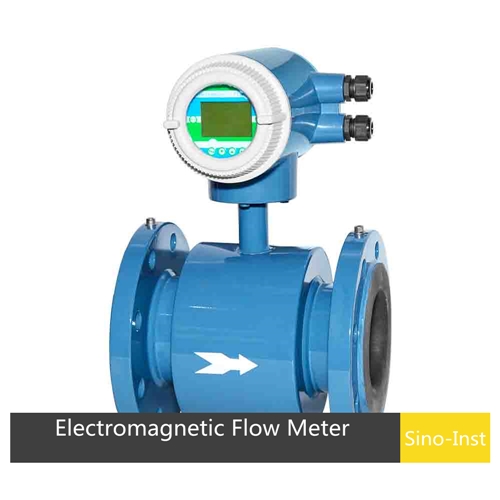

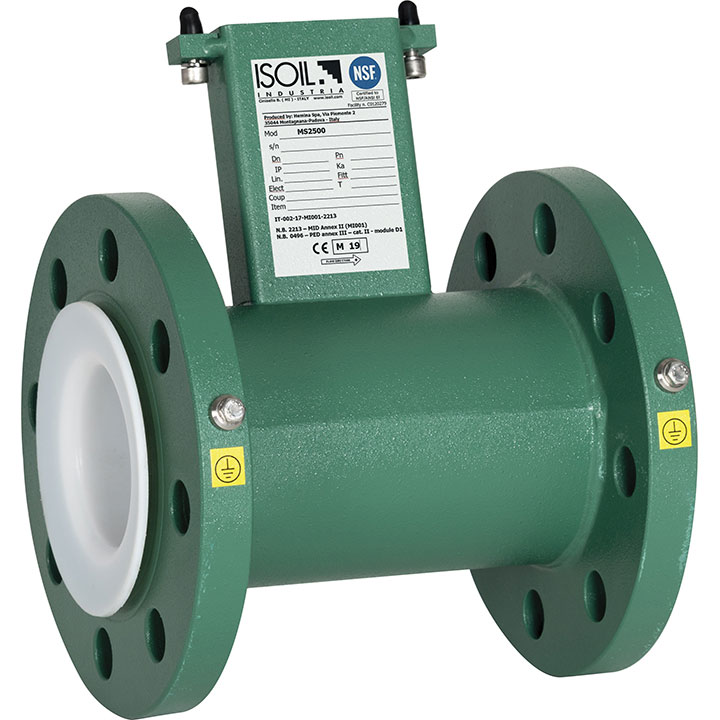

These flow meters typically consist of a field‑mounted sensor (the flow tube) and an electronics transmitter module. The sensor is installed in the process pipeline with a lining material suitable for the treated water type (e.g., PTFE, hard rubber, or ceramic) and electrodes exposed to the flow. The transmitter conditions the signal, compensates for temperature and conductivity variations, and provides standard industrial outputs such as 4‑20 mA, pulse, HART®, RS‑485, Profibus, or Modbus. Such communication capabilities allow seamless integration with PLCs and SCADA servers for real‑time monitoring, alarm conditions, and data logging.
Electromagnetic flow meters are widely chosen in municipal and industrial water treatment plants due to their non‑obstructive design, meaning there are no internal moving parts that could become clogged by particulate matter or debris present in raw sewage or process water streams. This leads to excellent long‑term reliability, minimal maintenance requirements, and high measurement accuracy even in challenging environments. Unlike mechanical meters, mag meters maintain stable performance across a wide range of flow conditions and water qualities. n a SCADA system, the flow data from mag meters feed into dashboards that operators use to visualize plant performance, analyze trends, and automate controls. For example, flow measurements can trigger automatic adjustments in pump staging, control chemical dosing based on real flow volume, or initiate alarms and interlocks if flow rates exceed safe thresholds. Historical flow data are also archived and can be used for reporting, compliance verification, and performance optimization. Common applications in water treatment include inlet raw water flow monitoring, distribution network flow measurement, effluent discharge control, and allocation measurement for separate treatment trains. Because electromagnetic flow meters are insensitive to changes in fluid density, viscosity, and temperature — provided the fluid is conductive — they are ideal for measuring treated and untreated potable water, recycled wastewater, and industrial effluents.
